Pipeline Overview#
spectrex is a Python library for spectral extraction from grism wide-field slitless spectroscopy (WFSS) images, with a focus on crowded fields such as those produced by NIRISS on JWST. It encodes the instrument’s dispersive mapping as a sparse forward operator \(H\), decomposes stellar spectral energy distributions onto a PCA basis, and recovers source coefficients by solving a weighted inverse problem. Two operator/solver pairs are provided — one based on SciPy sparse matrices for exploration, one based on JAX for JIT-compiled production runs on crowded scenes.
Pipeline Architecture#

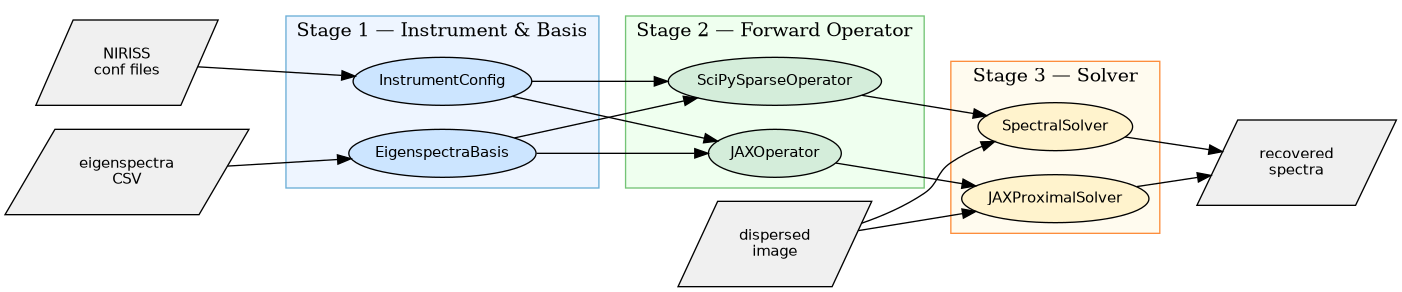

The following diagram shows the full data-flow from raw inputs to recovered spectra:
![digraph spectrex_pipeline {
rankdir=LR;
node [fontname="Helvetica", fontsize=11];
// Inputs
conf_files [label="NIRISS\nconf files", shape=parallelogram, style=filled, fillcolor="#f0f0f0"];
eigen_csv [label="eigenspectra\nCSV", shape=parallelogram, style=filled, fillcolor="#f0f0f0"];
dispersed_img [label="dispersed\nimage", shape=parallelogram, style=filled, fillcolor="#f0f0f0"];
// Stage 1 — instrument & basis (blue)
subgraph cluster_stage1 {
label="Stage 1 — Instrument & Basis";
style=filled; fillcolor="#eef5ff"; color="#6baed6";
InstrumentConfig [label="InstrumentConfig", style=filled, fillcolor="#cce5ff"];
EigenspectraBasis [label="EigenspectraBasis", style=filled, fillcolor="#cce5ff"];
}
// Stage 2 — operators (green)
subgraph cluster_stage2 {
label="Stage 2 — Forward Operator";
style=filled; fillcolor="#efffef"; color="#74c476";
op_scipy [label="SciPySparseOperator", style=filled, fillcolor="#d4edda"];
op_jax [label="JAXOperator", style=filled, fillcolor="#d4edda"];
}
// Stage 3 — solvers (orange)
subgraph cluster_stage3 {
label="Stage 3 — Solver";
style=filled; fillcolor="#fffbef"; color="#fd8d3c";
solver_scipy [label="SpectralSolver", style=filled, fillcolor="#fff3cd"];
solver_jax [label="JAXProximalSolver", style=filled, fillcolor="#fff3cd"];
}
// Output
output [label="recovered\nspectra", shape=parallelogram, style=filled, fillcolor="#f0f0f0"];
// Edges
conf_files -> InstrumentConfig;
eigen_csv -> EigenspectraBasis;
InstrumentConfig -> op_scipy;
InstrumentConfig -> op_jax;
EigenspectraBasis -> op_scipy;
EigenspectraBasis -> op_jax;
dispersed_img -> solver_scipy;
dispersed_img -> solver_jax;
op_scipy -> solver_scipy;
op_jax -> solver_jax;
solver_scipy -> output;
solver_jax -> output;
}](../_images/graphviz-a579328f36e177083f446f4ec863c5c6310dbf4d.png)
Forward Model#
spectrex solves the linear system
where:
\(\mathbf{f}\) — vectorised dispersed detector image (the observation)
\(H\) — the forward operator, built from the instrument configuration and the PCA spectral basis
\(\mathbf{a}\) — PCA coefficient vector (\(K \times M\), one row per source group)
\(\boldsymbol{\varepsilon}\) — pixel noise (modelled by
NoiseModel)
Recovering \(\mathbf{a}\) from \(\mathbf{f}\) is the spectral extraction problem.
Which Solver Should I Use?#
Scenario |
Operator |
Solver |
Notes |
|---|---|---|---|
Sparse field, few sources (≲20) |
Fast to build; unconstrained LSQR / LSMR; suited to exploration |
||
Crowded field, many sources |
Compact trace layout; group-L1 FISTA with adaptive restart; JIT-compiled |
See also
Instrument Configuration & Spectral Basis — loading configuration files and the PCA basis
Forward Operators — building the forward operator
Solvers — choosing and tuning a solver
spectrex mock example — end-to-end worked example
Solver Accuracy Comparison: LSQR vs FISTA Group-L1 — LSQR vs FISTA accuracy benchmark
Computational Benchmarks: JAXOperator vs SciPySparseOperator — runtime and memory comparison
RMSE vs Source Density — RMSE as a function of source density
