Forward Operators

The forward operator \(H\) encodes the mapping from source spectral coefficients \(\mathbf{a}\) to detector pixel values \(\mathbf{f} = H\mathbf{a}\). It is built once from an InstrumentConfig and an EigenspectraBasis, then passed to a solver.

spectrex ships two concrete operator implementations, both satisfying ForwardOperatorProtocol. Any class that implements apply and apply_adjoint with matching signatures can be substituted transparently.

ForwardOperatorProtocol

ForwardOperatorProtocol is a runtime_checkable() Protocol that defines the interface every operator must satisfy. The two required methods are:

• apply(a) — computes \(H\mathbf{a}\); takes a coefficient array of shape (K, M) and returns a detector array of shape image_shape.

• apply_adjoint(f) — computes \(H^\top \mathbf{f}\); the transpose operation used by iterative solvers.

Both n_coefficients and image_shape must be properties so that solvers can allocate correctly sized buffers without inspecting the operator internals.

SciPySparseOperator

SciPySparseOperator stores \(H\) as a CSR sparse matrix. Build it with build(), which loops over sources and orders, calling get_trace() and the basis integrated_weights() to fill the matrix entries. The resulting matrix is K-independent in structure — all sources and all PCA components are packed into a flat coefficient vector.

This operator is best suited to sparse fields (fewer than ~20 sources) or to exploratory analysis where quick iteration matters more than peak throughput. save() / load() serialise and restore the matrix from disk so expensive builds need not be repeated.

JAXOperator

JAXOperator uses a compact trace layout that avoids storing a full \(N_\text{pix} \times K\) matrix:

• trace_indices[K, O, L] — int32 array of detector pixel indices, shape (n_sources, n_orders, n_lambda)

• weights[O, L, M] — float32 array of sensitivity-weighted basis values, shape (n_orders, n_lambda, n_components)

Pixel index arithmetic is vectorised by JAX and JIT-compiled, so apply() and apply_adjoint() run at near-hardware throughput on both CPU and GPU. Out-of-bounds wavelengths are routed to a ghost pixel at index n_pix; the ghost pixel value is discarded before returning the detector image, ensuring no index-out-of-range errors from JAX’s jax.numpy.at() semantics.

n_active() reports how many sources have at least one valid trace pixel; n_components() reports the number of PCA components.

H-matrix Schematic

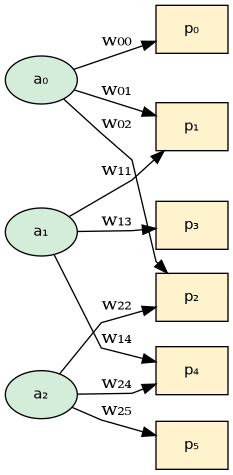

The diagram below illustrates schematically how apply accumulates source coefficients onto detector pixels. Not all \(K \times N_\text{pix}\) edges are drawn; three representative source groups and six pixels are shown:

Each edge label \(w_{kp}\) is the sensitivity-weighted sum of the PCA basis integrated over the trace of source group k at detector pixel p. apply() performs this scatter–add; apply_adjoint performs the corresponding gather.

API Reference

class spectrex.ForwardOperatorProtocol

Protocol for the grism dispersion operator \(H\).

Any object satisfying this protocol can be passed to SpectralSolver or JAXProximalSolver. Conformance is structural — no inheritance from this class is required. Use isinstance(obj, ForwardOperatorProtocol) to check at runtime.

image_shape: tuple[int, int]

(n_rows, n_cols) of the detector image.

n_coefficients: int

Total length of the flattened coefficient vector (n_sources * n_components for JAXOperator).

apply(a_tilde)

Forward pass: \(H\,\mathbf{a}\).

Parameters:

a_tilde (numpy.ndarray) – Coefficient vector, shape (n_coefficients,).

Returns:

Flattened dispersed image, shape (n_rows * n_cols,).

Return type:

numpy.ndarray

apply_adjoint(f)

Adjoint pass: \(H^\top \mathbf{f}\).

Parameters:

f (numpy.ndarray) – Flattened dispersed image, shape (n_rows * n_cols,).

Returns:

Coefficient vector, shape (n_coefficients,).

Return type:

numpy.ndarray

class spectrex.SciPySparseOperator(H, image_shape)

Bases: object

Grism forward operator backed by a scipy CSR sparse matrix.

Build from calibration data with build(), or load a previously cached operator with load().

Parameters:

• H (csr_matrix) – Sparse forward matrix, shape (n_rows * n_cols, n_rows * n_cols * n_components).

• image_shape (tuple[int, int]) – (n_rows, n_cols) of the detector image.

apply(a_tilde)

Forward pass: H @ a_tilde.

Parameters:

a_tilde (np.ndarray) – Shape (n_coefficients,).

Returns:

Shape (n_rows * n_cols,).

Return type:

np.ndarray

apply_adjoint(f)

Adjoint pass: H.T @ f.

Parameters:

f (np.ndarray) – Shape (n_rows * n_cols,).

Returns:

Shape (n_coefficients,).

Return type:

np.ndarray

classmethod build(config, basis, image_shape)

Build the sparse forward matrix H from scratch.

Parameters:

• config (InstrumentConfig)

• basis (EigenspectraBasis)

• image_shape (tuple[int, int]) – (n_rows, n_cols) of the detector image.

Return type:

SciPySparseOperator

Notes

Build complexity is O(n_rows * n_cols * n_wavelengths) per diffraction order. For full NIRISS (2048 × 2048) this will take minutes. Cache the result with save().

classmethod load(path)

Load a saved operator from an .npz file.

Parameters:

path (Path) – File written by save().

Return type:

SciPySparseOperator

save(path)

Save the operator to a single .npz file.

Parameters:

path (Path) – Output path. The .npz extension is added if absent.

Return type:

None

class spectrex.JAXOperator(trace_indices, weights, image_shape)

Bases: object

Grism forward operator using compact trace index storage.

Unlike SciPySparseOperator, this class never materialises a full sparse matrix. Instead it stores:

• trace_indices[k, o, λ] — flat pixel index where source k, dispersion order o, wavelength index λ lands on the detector. Out-of-bounds wavelengths use n_pix (ghost pixel sentinel).

• weights[o, λ, m] — shared instrument response × basis weight. Shape is independent of image size and number of sources.

Memory scales as O(K × n_orders × n_lambda) rather than O(N_pix² × M), making it tractable for full NIRISS 2048 × 2048.

Parameters:

• trace_indices (np.ndarray) – Shape (K, n_orders, n_lambda), dtype int32. Values in [0, n_pix]; n_pix is the ghost pixel sentinel.

• weights (np.ndarray) – Shape (n_orders, n_lambda, n_components), dtype float32.

• image_shape (tuple[int, int]) – (n_rows, n_cols) of the detector image.

apply(a_tilde)

Forward pass: H @ a_tilde.

Parameters:

a_tilde (np.ndarray) – Coefficient vector, shape (K * M,).

Returns:

Flattened dispersed image, shape (n_rows * n_cols,).

Return type:

np.ndarray

apply_adjoint(f)

Adjoint pass: H.T @ f.

Parameters:

f (np.ndarray) – Flattened dispersed image, shape (n_rows * n_cols,).

Returns:

Coefficient vector, shape (K * M,).

Return type:

np.ndarray

classmethod build(config, basis, image_shape, source_positions)

Build from calibration data and a source catalogue.

Parameters:

• config (InstrumentConfig)

• basis (EigenspectraBasis)

• image_shape (tuple[int, int]) – (n_rows, n_cols) of the detector image.

• source_positions (np.ndarray) – Shape (K, 2) with (row, col) float positions for each source. Sub-pixel positions are accepted.

Return type:

JAXOperator

classmethod load(path)

Load a serialised operator from a .npz archive.

Parameters:

path (Path) – File written by save().

Return type:

JAXOperator

property n_active: int

Number of active sources K.

property n_components: int

Number of basis components M.

save(path)

Serialise to a .npz archive.

Parameters:

path (Path) – Output path. The .npz extension is added by numpy.savez() if absent.

Return type:

None

See also

• Instrument Configuration & Spectral Basis — building the inputs to the operator

• Solvers — passing the operator to a solver

• Computational Benchmarks: JAXOperator vs SciPySparseOperator — memory footprint and runtime benchmarks for both operators
