Instrument Configuration & Spectral Basis

Building the forward operator \(H\) requires two inputs: a description of how the grism disperses light across the detector (the instrument configuration), and a compact representation of the source spectral energy distributions in terms of a PCA basis (the eigenspectra basis). The classes on this page provide both.

InstrumentConfig

InstrumentConfig reads a NIRISS WFSS configuration file and wraps the per-order GrismTrace objects that map (x, y) source positions to detector pixel positions, wavelengths, and sensitivity curves. It is a plain class (not a dataclass) because GrismTrace is not hashable.

Construct it with from_files(), passing the path to the configuration file and the wavelength range over which extraction should be performed. Once built, call get_trace() for any source at detector position (x, y) and a diffraction order to obtain the arrays of pixel positions, wavelengths, and sensitivity values needed to populate the forward operator.

EigenspectraBasis

EigenspectraBasis stores a truncated PCA decomposition of a library of stellar SEDs. It is a frozen dataclass — all arrays are marked read-only via numpy.ndarray.setflags() — so it can be safely shared between operators and solvers without defensive copying.

Load it from a CSV of eigenspectra with from_csv(), specifying the wavelength range that matches the instrument configuration. A given source’s SED is approximated as \(\mathrm{SED}(\lambda) = \mathbf{E}(\lambda)\,\mathbf{c}\), where \(\mathbf{E}\) is the matrix of eigenspectra components and \(\mathbf{c}\) is the coefficient vector.

reconstruct() recovers the SED from coefficients; broadband_image() integrates the reconstructed SED over the sensitivity curves of an image filter to produce a predicted broadband map; integrated_weights() returns the pre-integrated weight matrix used internally by the operators.

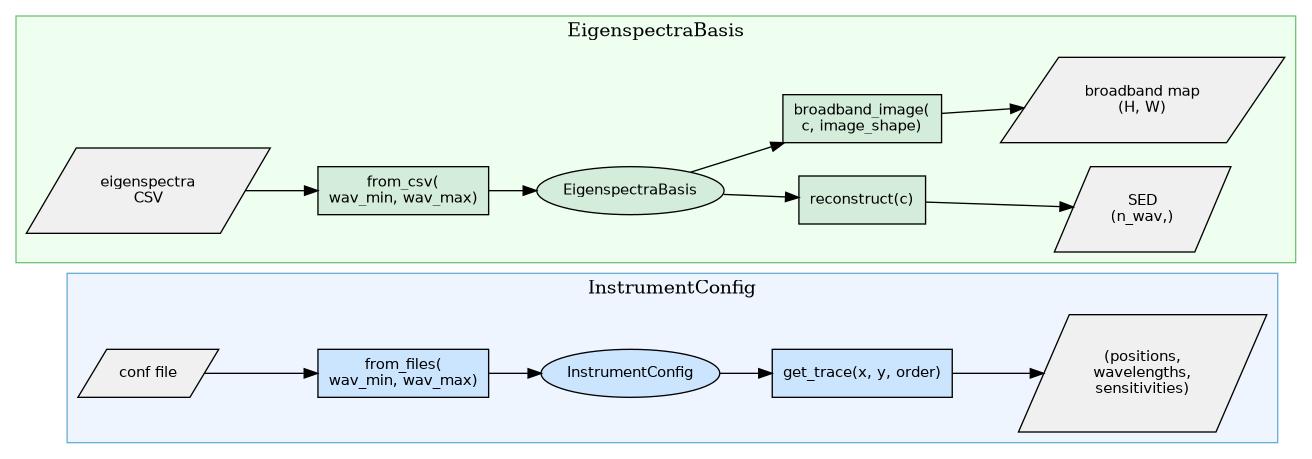

Data Flow

API Reference

class spectrex.InstrumentConfig(grism, filter_name, wavelengths, orders, sensitivity, trace)

Bases: object

Instrument configuration for a specific grism/filter combination.

All instrument data is loaded eagerly at construction via from_files(). No file I/O occurs after that point.

Parameters:

• grism (str) – Grism identifier, e.g. "GR150R".

• filter_name (str) – Filter identifier, e.g. "F150W".

• wavelengths (np.ndarray) – Shared wavelength grid in Angstrom, shape (n_wav,).

• orders (list[str]) – Diffraction order labels, e.g. ["A", "B", "C"].

• sensitivity (dict[str, np.ndarray]) – Per-order sensitivity curves, each shape (n_wav,), normalised so that sum(sensitivity) == 1 (approximately).

• trace (GrismTrace)

classmethod from_files(conf_path, wavelengthrange_path, sensitivity_dir, filter_name, n_wavelengths=150)

Build an InstrumentConfig from calibration files.

Parameters:

• conf_path (Path) – Path to the grism .conf configuration file. The grism name is inferred from the filename stem (e.g. GR150R.F150W.220725.conf -> "GR150R").

• wavelengthrange_path (Path) – Path to the JWST NIRISS wavelength-range .asdf file.

• sensitivity_dir (Path) – Directory containing sensitivity .fits files named NIRISS.{grism}.{filter_name}.{order_int}.*.sens.fits.

• filter_name (str) – Filter name, e.g. "F150W".

• n_wavelengths (int, optional) – Number of wavelength sampling points. Default 150.

Return type:

InstrumentConfig

get_trace(x0, y0, order)

Return trace pixel coordinates for a source at (x0, y0).

Parameters:

• x0 (float) – Source row position in detector coordinates.

• y0 (float) – Source column position in detector coordinates.

• order (str) – Diffraction order label, e.g. "A".

Returns:

(x_trace, y_trace) arrays at self.wavelengths, each shape (n_wav,).

Return type:

tuple[np.ndarray, np.ndarray]

Raises:

ValueError – If order is not in self.orders.

class spectrex.EigenspectraBasis(wavelengths, components, n_components)

Bases: object

PCA eigenspectra basis for representing source spectra.

Parameters:

• wavelengths (np.ndarray) – Wavelength grid in Angstrom, shape (n_wav,). Read-only.

• components (np.ndarray) – Basis components, shape (n_wav, n_components). Read-only.

• n_components (int) – Number of basis components (components.shape[1]).

broadband_image(a_tilde, image_shape)

Reconstruct broadband direct image from full coefficient vector.

Vectorised; no Python loop over pixels.

Parameters:

• a_tilde (np.ndarray) – Shape (n_rows * n_cols * n_components,).

• image_shape (tuple[int, int]) – (n_rows, n_cols).

Returns:

Shape (n_rows, n_cols).

Return type:

np.ndarray

components: ndarray

classmethod from_csv(csv_path, wavelengths)

Load and interpolate eigenspectra from a CSV file.

Parameters:

• csv_path (Path) – CSV file with a header row, first column wavelength in µm, remaining columns as eigenspectra components.

• wavelengths (np.ndarray) – Target wavelength grid in Angstrom to interpolate onto.

Return type:

EigenspectraBasis

Raises:

ValueError – If wavelengths lies outside the CSV wavelength range.

integrated_weights()

Trapezoidal integral of each basis component over wavelength.

Computed as np.trapezoid(components, wavelengths, axis=0).

Returns:

Shape (n_components,). Dot with a pixel’s coefficients gives its broadband flux.

Return type:

np.ndarray

n_components: int

reconstruct(coefficients)

Reconstruct a spectrum from PCA coefficients.

Parameters:

coefficients (np.ndarray) – Shape (n_components,).

Returns:

Shape (n_wav,) — flux at each wavelength.

Return type:

np.ndarray

wavelengths: ndarray

See also

• spectrex mock example — end-to-end example loading config files and building a forward operator

• Forward Operators — how InstrumentConfig and EigenspectraBasis feed into the forward operator
